Polishing machine parameter configuration table
(two discs + two straight rollers)
Maximum processing width: 1300mm | Polishing thickness: 8-160mm |
Processing plate length: >=350mm | Polishing roller speed: variable speed and frequency modulation |
Conveyor belt speed: 5-20m/min | Diameter of polishing roller: 300mm |
Total motor capacity:7.75kw | Straight roller motor: 2.2kw*2 |
Conveying motor: 0.75kw | Lifting motor: 0.55kw-RV40 |
Disc motor: 1.5kw six levels | Disc swing motor: 0.55kw |
Machine size: 2950*2050*2160mm | Net machine weight: 1420kg |
Wooden box size: 2480*2130*2150mm |
Introduction:
Woodworking polishing machine is widely used in woodworking furniture industry. It is suitable for polishing, primer and white stubble polishing of various panels of solid wood furniture. The polishing thickness is self-adjusting from 10-160mm.
The vertical rollers of this machine have a better grinding effect on the transverse grooves of the workpiece; the disc can grind the surface of the workpiece in 360° to ensure the grinding effect of the workpiece. Customers can customize the best ratio according to different grinding needs.

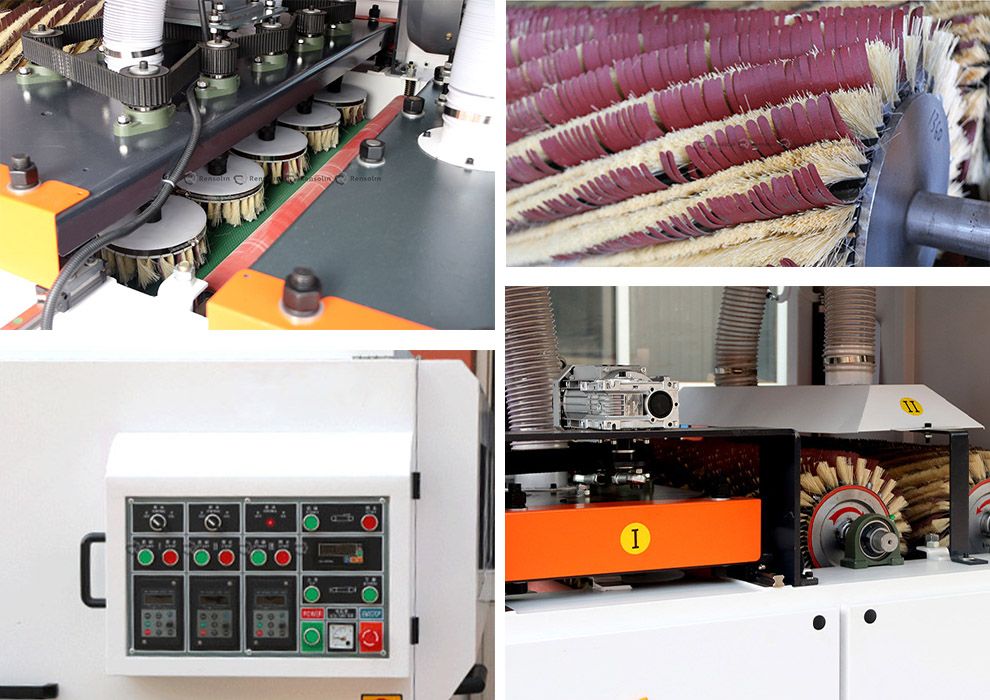

1. Reciprocating swing-discs are staggered to prevent missed hits
The grinding disc adopts staggered arrangement, reciprocating oscillating grinding, to prevent missed grinding, and manual speed adjustment can be used to improve grinding quality
2.Customization-the ratio of wool rollers can be customized
According to the different grinding materials, the machine hair roller ratio can be freely customized and matched
3.Customized gauze strip
German Hermes abrasive belts, Japanese Riken abrasive belts, high-quality Chinese abrasive belts can be customized.
Machine advantage
①Laser cutting and blanking
The sheet metal of the machine body is all laser-cut, which is not only more beautiful, but also more accurate and more stable.
②Concise and clear control panel
The panel design is clear and clear, with a rotatable panel design. More convenient operation, saving labor and time, and higher efficiency
③Pure copper core national standard motor
Pure copper core, full power motor, will not affect the work even in high temperature environment, large speed ratio, conveying speed can be adjusted at will.
